2 Ton RAZE Cantilevered Jib Crane
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$4,122.00
Your Cost
$3,297.00
You Saved : $825
| Manufacture Part Number | CMJ-4000-8 |
|---|---|
| Brand | RAZE |
| Estimated Ship Time | 2-3 Weeks |
Only %1 left
Estimated Ship Time:
2-3 Weeks
For use in bays, along walls, in work cells, or as a supplement to overhead cranes or gantry systems. Similar to the tie rod style crane, but allowing maximum hoist lift.
CAPACITIES & SPANS
- Capacities up to 12 ton
- Standard Span lengths up to 30+ feet
- Standard Span lengths up to 30+ feet
- Custom span lengths available
ROTATION
180+ degree rotation is standard
FITTINGS
Heavy duty with effortless rotation, cast iron fittings with roller bearings and zerk fittings for easy field lubrication.
BENEFITS vs. TIE ROD STYLE JIB CRANE
- Less headroom required for mounting
- Maximizes hoist lift
Technical Specification
All
1 TON
2 TON
3 TON
1/2 TON
1/4 TON
| Capacity | Span (S) | Model Number | R | F | I | Thrust & Pull |
|---|---|---|---|---|---|---|
| 1/4 TON | 8' | CMJ-500-8 | 4'-0 | 3" | 8" | 1300# |
| 1/4 TON | 10' | CMJ-500-10 | 4'-0 | 3" | 8" | 1575# |
| 1/4 TON | 12' | CMJ-500-12 | 4'-0 | 3" | 8" | 1900# |
| 1/4 TON | 14' | CMJ-500-14 | 4'-0 | 3" | 8" | 2225# |
| 1/4 TON | 16' | CMJ-500-16 | 4'-0 | 3" | 10" | 2600# |
| 1/4 TON | 18' | CMJ-500-18 | 4'-0 | 3" | 10" | 2900# |
| 1/4 TON | 20' | CMJ-500-20 | 4'-0 | 3" | 10" | 3300# |
| 1/2 TON | 8' | CMJ-1000-8 | 4'-0" | 3" | 8" | 2600# |
| 1/2 TON | 10' | CMJ-1000-10 | 4'-0" | 3" | 8" | 3150# |
| 1/2 TON | 12' | CMJ-1000-12 | 4'-0" | 3" | 8" | 3850# |
| 1/2 TON | 14' | CMJ-1000-14 | 4'-0" | 3" | 10" | 4500# |
| 1/2 TON | 16' | CMJ-1000-16 | 4'-0" | 3" | 10" | 5150# |
| 1/2 TON | 18' | CMJ-1000-18 | 5'-0" | 4" | 12" | 4700# |
| 1/2 TON | 20' | CMJ-1000-20 | 5'-0" | 4" | 12" | 5200# |
| 1 TON | 8' | CMJ-2000-8 | 4'-0" | 3" | 8" | 5000# |
| 1 TON | 10' | CMJ-2000-10 | 4'-0" | 3" | 10" | 6250# |
| 1 TON | 12' | CMJ-2000-12 | 4'-0" | 3" | 10" | 7600# |
| 1 TON | 14' | CMJ-2000-14 | 5'-0" | 4" | 12" | 7300# |
| 1 TON | 16' | CMJ-2000-16 | 5'-0" | 4" | 12" | 8200# |
| 1 TON | 18' | CMJ-2000-18 | 6'-0" | 4-1/2" | 16" | 7750# |
| 1 TON | 20' | CMJ-2000-20 | 6'-0" | 4-1/2" | 16" | 8600# |
| 2 TON | 8' | CMJ-4000-8 | 5'-0" | 4" | 12" | 8000# |
| 2 TON | 10' | CMJ-4000-10 | 5'-0" | 4" | 12" | 10500# |
| 2 TON | 12' | CMJ-4000-12 | 5'-0" | 4" | 12" | 12500# |
| 2 TON | 14' | CMJ-4000-14 | 6'-0" | 4-1/2" | 16" | 13000# |
| 2 TON | 16' | CMJ-4000-16 | 6'-0" | 4-1/2" | 18" | 14500# |
| 2 TON | 18' | CMJ-4000-18 | 6'-0" | 4-1/2" | 18" | 16000# |
| 2 TON | 20' | CMJ-4000-20 | 6'-0" | 4-1/2" | 18" | 17500# |
| 3 TON | 8' | CMJ-6000-8 | 6'-0" | 4-1/2" | 15" | 9900# |
| 3 TON | 10' | CMJ-6000-10 | 6'-0" | 4-1/2" | 15" | 13000# |
| 3 TON | 12' | CMJ-6000-12 | 6'-0" | 4-1/2" | 15" | 14500# |
| 3 TON | 14' | CMJ-6000-14 | 6'-0" | 4-1/2" | 18" | 18000# |
| 3 TON | 16' | CMJ-6000-16 | 6'-0" | 4-1/2" | 18" | 21000# |
| 3 TON | 18' | CMJ-6000-18 | 6'-0" | 4-1/2" | 21" | 23000# |
| 3 TON | 20' | CMJ-6000-20 | 6'-0" | 4-1/2" | 21" | 25500# |
| Capacity | Span (S) | Model Number | R | F | I | Thrust & Pull |
|---|---|---|---|---|---|---|
| 1 TON | 8' | CMJ-2000-8 | 4'-0" | 3" | 8" | 5000# |
| 1 TON | 10' | CMJ-2000-10 | 4'-0" | 3" | 10" | 6250# |
| 1 TON | 12' | CMJ-2000-12 | 4'-0" | 3" | 10" | 7600# |
| 1 TON | 14' | CMJ-2000-14 | 5'-0" | 4" | 12" | 7300# |
| 1 TON | 16' | CMJ-2000-16 | 5'-0" | 4" | 12" | 8200# |
| 1 TON | 18' | CMJ-2000-18 | 6'-0" | 4-1/2" | 16" | 7750# |
| 1 TON | 20' | CMJ-2000-20 | 6'-0" | 4-1/2" | 16" | 8600# |
| Capacity | Span (S) | Model Number | R | F | I | Thrust & Pull |
|---|---|---|---|---|---|---|
| 2 TON | 8' | CMJ-4000-8 | 5'-0" | 4" | 12" | 8000# |
| 2 TON | 10' | CMJ-4000-10 | 5'-0" | 4" | 12" | 10500# |
| 2 TON | 12' | CMJ-4000-12 | 5'-0" | 4" | 12" | 12500# |
| 2 TON | 14' | CMJ-4000-14 | 6'-0" | 4-1/2" | 16" | 13000# |
| 2 TON | 16' | CMJ-4000-16 | 6'-0" | 4-1/2" | 18" | 14500# |
| 2 TON | 18' | CMJ-4000-18 | 6'-0" | 4-1/2" | 18" | 16000# |
| 2 TON | 20' | CMJ-4000-20 | 6'-0" | 4-1/2" | 18" | 17500# |
| Capacity | Span (S) | Model Number | R | F | I | Thrust & Pull |
|---|---|---|---|---|---|---|
| 3 TON | 8' | CMJ-6000-8 | 6'-0" | 4-1/2" | 15" | 9900# |
| 3 TON | 10' | CMJ-6000-10 | 6'-0" | 4-1/2" | 15" | 13000# |
| 3 TON | 12' | CMJ-6000-12 | 6'-0" | 4-1/2" | 15" | 14500# |
| 3 TON | 14' | CMJ-6000-14 | 6'-0" | 4-1/2" | 18" | 18000# |
| 3 TON | 16' | CMJ-6000-16 | 6'-0" | 4-1/2" | 18" | 21000# |
| 3 TON | 18' | CMJ-6000-18 | 6'-0" | 4-1/2" | 21" | 23000# |
| 3 TON | 20' | CMJ-6000-20 | 6'-0" | 4-1/2" | 21" | 25500# |
| Capacity | Span (S) | Model Number | R | F | I | Thrust & Pull |
|---|---|---|---|---|---|---|
| 1/2 TON | 8' | CMJ-1000-8 | 4'-0" | 3" | 8" | 2600# |
| 1/2 TON | 10' | CMJ-1000-10 | 4'-0" | 3" | 8" | 3150# |
| 1/2 TON | 12' | CMJ-1000-12 | 4'-0" | 3" | 8" | 3850# |
| 1/2 TON | 14' | CMJ-1000-14 | 4'-0" | 3" | 10" | 4500# |
| 1/2 TON | 16' | CMJ-1000-16 | 4'-0" | 3" | 10" | 5150# |
| 1/2 TON | 18' | CMJ-1000-18 | 5'-0" | 4" | 12" | 4700# |
| 1/2 TON | 20' | CMJ-1000-20 | 5'-0" | 4" | 12" | 5200# |
| Capacity | Span (S) | Model Number | R | F | I | Thrust & Pull |
|---|---|---|---|---|---|---|
| 1/4 TON | 8' | CMJ-500-8 | 4'-0 | 3" | 8" | 1300# |
| 1/4 TON | 10' | CMJ-500-10 | 4'-0 | 3" | 8" | 1575# |
| 1/4 TON | 12' | CMJ-500-12 | 4'-0 | 3" | 8" | 1900# |
| 1/4 TON | 14' | CMJ-500-14 | 4'-0 | 3" | 8" | 2225# |
| 1/4 TON | 16' | CMJ-500-16 | 4'-0 | 3" | 10" | 2600# |
| 1/4 TON | 18' | CMJ-500-18 | 4'-0 | 3" | 10" | 2900# |
| 1/4 TON | 20' | CMJ-500-20 | 4'-0 | 3" | 10" | 3300# |
Reviews
Write Your Own Review

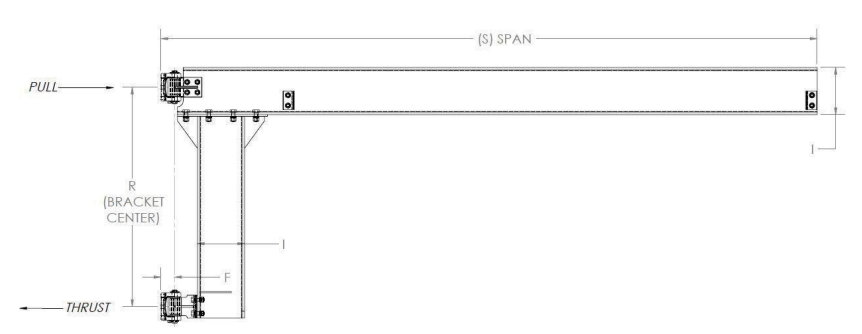

Dimension Guide
