3.5 Ton AMH Submersible X5SL Series Lever Hoist

The right equipment. The right support. Fast.

In Stock / Ships Fast

Expert Support Available

Industrial-Grade Equipment

Freight Support Available

List Price $1,322.00 Your Cost $1,189.00 You Saved : $133

More Information
Manufacture Part Number	X5SL07056
Brand	AMH
Estimated Ship Time	1-2 Business Days

Only %1 left

Add a new review

Please select required fields below in order to add item(s) to your cart:

Lift

Ready to Order?

Buy from Crane Depot with confidence.

Qty

Call Now for Expert Help

Estimated Ship Time: 1-2 Business Days

We make equipment shipping fast, reliable, and hassle-free.

Ships directly from authorized warehouse locations
Nationwide freight shipping available
Shipment tracking is provided after order dispatch
Expedited shipping options available upon request

Crane Depot coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Product Overview

The AMH X5 series lever hoist is one of the most advanced and capable lever hoist on the market today, and is completely submergible. They offer a wider range of capacities and are assembled and tested in America!

Additional Features

SubSea models for use submerged under water
Brake is enclosed in a gasket sealed area along with bolted-in stainless dual springs and pawls
Meets IMCA D028 standard (UK sub-sea lever hoist standard)
Extensive coatings, finishes and materials to resist corrosion
Fitted with an adjustable chain stop to meet local codes for use under water

X5 Features

Brake sets and operates without minimum preload
100% inspection of hooks per ASME B30 and easy hook replacement is permitted by bolted hook blocks
All steel body for durable strength in a smaller size
Powder coat and plated external l parts to resist corrosion
Caged roller bearings on chain wheels for highest efficiency
Laser etched stainless steel nameplates with required OSHA /ASME B30 warnings, model and stamped serial number
Long life fused brake friction disc cannot crack, shatter or absorb moisture
Grade 100 zinc plated load chain made in Japan or EU
Ambient Temperature range: -40¬¨‚àû to +140¬¨‚àûF (-40¬¨‚àû to +60¬¨‚àûC)
Meets: OSHA, ASME B30.21 and ASME HST-3. In addition the ultimate strength is 5 times Work Load Limit (WLL) meeting structural requirements of ASME HST-3 Appendix A, for use in marine and other applications as specified by US Department of Defense DOD.
APEX rating: II 3GD c IIB 60¬¨‚à´C X for limited use in Hazardous Environments
Final assembly and load test in the USA from imported components. Supplied with certificate by serial
Open chain guard allows visual inspection and does not trap contamination

Product Resources

Technical Specification

All

¾ to 1⅛

1½ to 1¾

3 to 3½

6 to 7

9 to 10

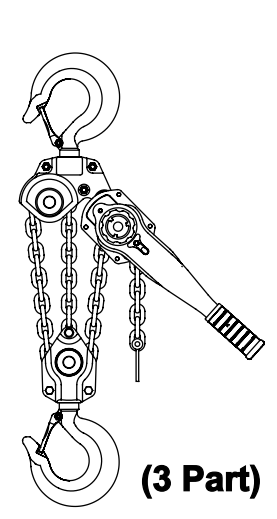

Base Model	WLL US Ton	kg	Chain Grade 100	Parts	A" Min.		C"	D"	E" with Latch	G"	P (lbs)	W (lbs) /Ft Lift	W (1) (lbs) 5' Lift
X5L02250	¾ to 1⅛	1020	C5.6H17Z	1	11.8	3.9	4.7	9.6	0.9	5.9	52	0.5	13.5
X5SL02250	¾ to 1⅛	1020	C5.6H17Z	1	11.8	3.9	4.7	9.6	0.9	5.9	52	0.5	13.5
X5L03528	1½ to 1¾	1600	C7.1H20Z	1	13.2	4.1	5.0	10.4	1.2	6.6	72	0.7	18.0
X5SL03528	1½ to 1¾	1600	C7.1H20Z	1	13.2	4.1	5.0	10.4	1.2	6.6	72	0.7	18.0
X5L07056	3 to 3½	3200	C10H28Z	1	15.6	4.6	6.3	16.3	1.3	7.9	84	1.5	36.5
X5SL07056	3 to 3½	3200	C10H28Z	1	15.6	4.6	6.3	16.3	1.3	7.9	84	1.5	36.5
X5L14000	6 to 7	6350	C10H28Z	2	21.3	4.6	8.6	16.3	1.6	7.9	86	3.2	55.0
X5SL14000	6 to 7	6350	C10H28Z	2	21.3	4.6	8.6	16.3	1.6	7.9	86	3.2	55.0
X5L20000	9 to 10	9070	C10H28Z	3	26.8	4.6	11.7	16.3	2.1	7.9	88	4.7	90.0
X5SL20000	9 to 10	9070	C10H28Z	3	26.8	4.6	11.7	16.3	2.1	7.9	88	4.7	90.0
