3 Ton Spanco T Series Three-Way Adjustable Aluminum I-Beam With Steel Legs Gantry Crane
|Manufacture Part Number
|Estimated Ship Time
Spanco T-Series Gantry Cranes offer three-way adjustability for span, height, and tread. Their adjustment flexibility allows use on multi-level floors, as well as passage through doorways, aisles, and under mezzanines or other overhead obstacles.
FEATURES OF SPANCO T-SERIES GANTRY CRANES
Superior Stability: Engineered design leaves I-beam free to pivot as it self-centers over the load. The ‚Äö√Ñ√∫true A-frame" design helps to maintain greater stability, virtually eliminating the swaying motion common to other 3-way adjustable gantry designs. Main legs, brace legs, and caster frames are made of heavy-gauge, square tubing with zinc-plated hardware.
Adjustable Span: Exclusive Spanloc‚Äö√ë¬¢ design securely holds the I-beam during adjustments and when set
Cantilever Options: Deliver materials through end of gantry; cantilever up to 25 percent of span (4-foot max.) using counterweight
Adjustable Height: Adjust in 6-inch intervals using push/pull pins on main legs
Adjustable Tread: A cable assembly is bolted inside the caster frame tubes to prevent overspreading
Heavy-Duty Casters: Four position, swivel-lock casters with moldon polyurethane wheels protect floors from damage

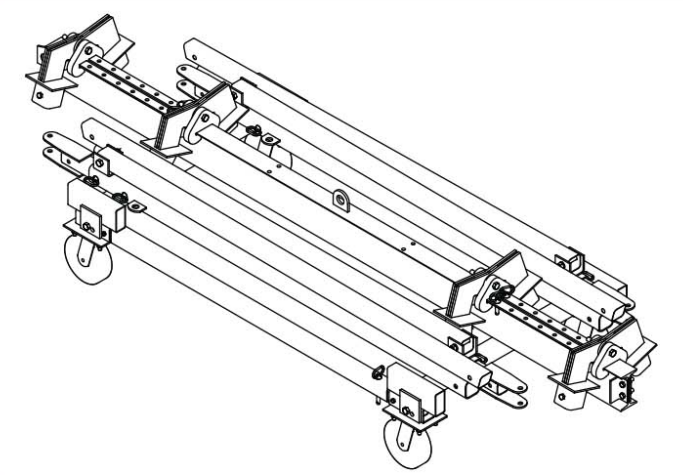

Cart Kits: Attach to caster frames to transform the disassembled gantry into a transportable handcart

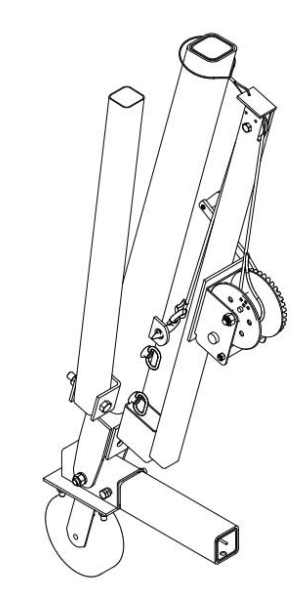

Detachable Height-Adjustment Kits: Convenient for frequent height adjustments, they eliminate the need for an overhead hoist or forklift truck. Kits consist of two units; order two kits to eliminate transfer of kits from end to end. Use under no-load conditions only.
Alternative Caster Styles and Wheel Brakes: Available upon request
