1/2 Ton Advantage Cantilevered Wall Mounted Jib Crane

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price $2,084.00 Your Cost $1,876.00 You Saved : $208
More Information
Manufacture Part Number CW108
Brand Advantage
Estimated Ship Time 2-3 Weeks
Only %1 left
Please select required fields below in order to add item(s) to your cart:
Ready to Order?
Buy from Crane Depot with confidence.
Estimated Ship Time: 2-3 Weeks

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Crane Depot coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Provide hoist coverage and 200 degree rotation for individual use in bays, along walls, or columns of plants, or as a supplement to an overhead crane or monorail system. This jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction. It is composed of a vertical mast mounted to 2 brackets on a wall or vertical building beam with a boom that cantilevers out, perpendicular from the wall at the top.

Additional features and benefits include:

- Capacity up to 3 Ton

- Spans up to 25'

- I Beam Construction

- Low Headroom design

- Rugged Teflon bushings

Technical Specification
Capacity (Pounds)ModelSpanBracket CentersBeam HeightFlange WidthThrust & PullUnit Weight
500CW5088'3' – 0"6"3-3/8"2,185#255#
500CW51010'3' – 0"6"3-3/8"2,720#275#
500CW51212'4' – 0"6"3-3/8"2,560#315#
500CW51414'4' – 0"8"4"2,975#335#
500CW51616'4' – 0"8"4"3,526#455#
500CW51818'4' – 0"8"4"4,150#480#
500CW52020'4' – 0"12"6 ½"4,980#810#
1,000CW1088'3' – 0"8"4"3,785#285#
1,000CW11010'3' – 0"8"4"4,750#315#
1,000CW11212'3' – 0"8"4"5,768#420#
1,000CW11414'4' – 0"8"4"5,145#490#
1,000CW11616'4' – 0"12"6 ½"6,125#660#
1,000CW11818'4' – 0"12"6 ½"6,950#715#
1,000CW12020'6' – 0"12"6 ½"5,450#890#
2,000CW2088'4' – 0"8"4"5,250#380#
2,000CW21010'5' – 0"12"6 ½"5,335#545#
2,000CW21212'5' – 0"12"6 ½"6,450#585#
2,000CW21414'5' – 0"12"6 ½"7,605#640#
2,000CW21616'6' – 0"12"6 ½"7,390#810#
2,000CW21818'6' – 0"16"7"8,750#1,085#
2,000CW22020'6' – 0"16"7"9,805#1,190#
Reviews
Write Your Own Review
You're reviewing:1/2 Ton Advantage Cantilevered Wall Mounted Jib Crane

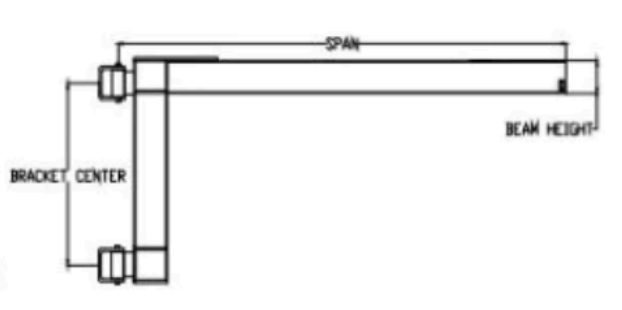

Dimension Guide
Dimension
