40 Ton Caldwell Adjustable Spreader Beam

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
More Information
Manufacture Part Number 32-40-7/11
Brand Caldwell
Add a new review
Ready to Order?
Buy from Crane Depot with confidence.

BUILT CUSTOM

CALL NOW FOR QUOTE

Estimated Ship Time:

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Crane Depot coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Caldwell Model 32 Adjustable Spreader Beam

This is an adjustable spreader beam that provide a versatile soltuion for handling many different sized loads, ideal for outdoor applications.

PRODUCT FEATURES:
  • Ideal where headroom is not limited.
  • Adds stability to lift.Telescopic spread standard.
  • Available with standard chain or wire rope rigging.
  • Available with Adjust-A-Leg¬¨√Ü rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
  • Wide range of additional sizes and capacities available.
  • Complies with ASME standards.
TOP RIGGING OPTIONS
  • OPTION C - Chain top rigging from beam to crane hook.
  • OPTION W - Wire rope top rigging from beam to crane hook.
  • OPTION A - Adjust-A-Leg¬¨√Ü sling top rigging for off-center load adjustment (not included in QUICKSHIP Program).

Product Resources
File Icon Caldwell Adjustable Spreader Beam Spec Sheet (152.88 kB)
Technical Specification
All
20
25
30
40
Capacity (tons) Model Number Spread (ft) Min / Max Headroom Min/Max (in.) Beam & Hook Weight (lbs.) A Oblong Dia (in.) B Oblong Width (in.) C Oblong Height (in.) F - Hook to beam Bottom (in.) O - Hook Opening w/ latch (in.) Chain Rigging Weight (lbs)
20 32-20-7/11 7 / 11 93/107 430 1.75 6.0 12.0 14.2 2.27 175
20 32-20-9/15 9 / 15 123/144 540 1.75 6.0 12.0 14.2 2.27 225
20 32-20-12/20 12 / 20 151/180 822 1.75 6.0 12.0 14.2 2.27 275
25 32-25-7/11 7 / 11 98/107 430 2 7.0 14.0 14.2 2.27 240
25 32-25-9/15 9 / 15 119/141 540 2 7.0 14.0 14.2 2.27 295
25 32-25-12/20 12 / 20 149/179 825 2 7.0 14.0 14.2 2.27 365
30 32-30-7/11 7 / 11 102/115 615 2 7.0 14.0 18.3 3.02 240
30 32-30-9/15 9 / 15 124/145 750 2 7.0 14.0 18.3 3.02 295
30 32-30-12/20 12 / 20 154/183 1065 2 7.0 14.0 18.3 3.02 365
40 32-40-7/11 7 / 11 105/118 620 2.25 8.0 16.0 18.3 3.02 375
40 32-40-9/15 9 / 15 127/148 840 2.25 8.0 16.0 18.3 3.02 470
40 32-40-12/20 12 / 20 154/184 1500 2.25 8.0 16.0 18.3 3.02 565
Capacity (tons) Model Number Spread (ft) Min / Max Headroom Min/Max (in.) Beam & Hook Weight (lbs.) A Oblong Dia (in.) B Oblong Width (in.) C Oblong Height (in.) F - Hook to beam Bottom (in.) O - Hook Opening w/ latch (in.) Chain Rigging Weight (lbs)
20 32-20-7/11 7 / 11 93/107 430 1.75 6.0 12.0 14.2 2.27 175
20 32-20-9/15 9 / 15 123/144 540 1.75 6.0 12.0 14.2 2.27 225
20 32-20-12/20 12 / 20 151/180 822 1.75 6.0 12.0 14.2 2.27 275
Capacity (tons) Model Number Spread (ft) Min / Max Headroom Min/Max (in.) Beam & Hook Weight (lbs.) A Oblong Dia (in.) B Oblong Width (in.) C Oblong Height (in.) F - Hook to beam Bottom (in.) O - Hook Opening w/ latch (in.) Chain Rigging Weight (lbs)
25 32-25-7/11 7 / 11 98/107 430 2 7.0 14.0 14.2 2.27 240
25 32-25-9/15 9 / 15 119/141 540 2 7.0 14.0 14.2 2.27 295
25 32-25-12/20 12 / 20 149/179 825 2 7.0 14.0 14.2 2.27 365
Capacity (tons) Model Number Spread (ft) Min / Max Headroom Min/Max (in.) Beam & Hook Weight (lbs.) A Oblong Dia (in.) B Oblong Width (in.) C Oblong Height (in.) F - Hook to beam Bottom (in.) O - Hook Opening w/ latch (in.) Chain Rigging Weight (lbs)
30 32-30-7/11 7 / 11 102/115 615 2 7.0 14.0 18.3 3.02 240
30 32-30-9/15 9 / 15 124/145 750 2 7.0 14.0 18.3 3.02 295
30 32-30-12/20 12 / 20 154/183 1065 2 7.0 14.0 18.3 3.02 365
Capacity (tons) Model Number Spread (ft) Min / Max Headroom Min/Max (in.) Beam & Hook Weight (lbs.) A Oblong Dia (in.) B Oblong Width (in.) C Oblong Height (in.) F - Hook to beam Bottom (in.) O - Hook Opening w/ latch (in.) Chain Rigging Weight (lbs)
40 32-40-7/11 7 / 11 105/118 620 2.25 8.0 16.0 18.3 3.02 375
40 32-40-9/15 9 / 15 127/148 840 2.25 8.0 16.0 18.3 3.02 470
40 32-40-12/20 12 / 20 154/184 1500 2.25 8.0 16.0 18.3 3.02 565
Reviews
Write Your Own Review
You're reviewing:40 Ton Caldwell Adjustable Spreader Beam

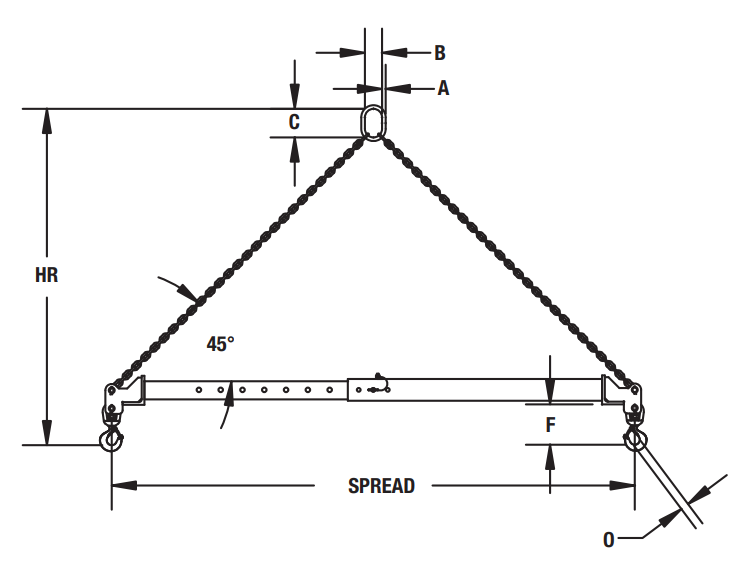

Dimension Guide
Dimension
