5 Ton Harrington HFHBS Fork Truck Hook Beam Swivel
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$1,106.00
Your Cost
$996.00
You Saved : $110
| Manufacture Part Number | HFHBS-5 |
|---|---|
| Brand | Harrington |
| Estimated Ship Time | 10-12 Business Days |
Estimated Ship Time:
10-12 Business Days
Features:
- This style of fork truck attachment is designed to efficiently lift and carry loads on both forks of a lift truck with a single latched fixed or swivel hook.
- Easily attaches to the forks.
- Engineered and manufactured in accordance to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL fork truck hooks are ProofTested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
Options:
- Additional sizes and capacities available
Technical Specification
All
2
5
10
15
7.5
| Model # | Capacity (US Tons)* | Fork Spread | Fork Opening Height | Fork Width Clearance | Hook Reach Fixed | Hook Reach Swivel | Hook Depth | Hook Opening | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| HFHBS-2-20 | 2 | 20 | 3.25 | 9.13 | 7.25 | 8.88 | 1.13 | 1.16 | 25 |
| HFHBS-5-24 | 5 | 24 | 3.25 | 10.75 | 9.25 | 11.44 | 1.81 | 1.69 | 50 |
| HFHBS-5-36 | 5 | 36 | 3.25 | 16.75 | 9.25 | 11.44 | 1.81 | 1.69 | 80 |
| HFHBS-7.5-36 | 7.5 | 36 | 4.25 | 16.25 | 13.75 | 15.75 | 2.25 | 2.22 | 175 |
| HFHBS-10-36 | 10 | 36 | 4.25 | 16 | 14.63 | 16.44 | 2.59 | 2.41 | 190 |
| HFHBS-15-36 | 15 | 36 | 4.25 | 15.88 | 14.5 | 16.31 | 2.59 | 2.41 | 220 |
| Model # | Capacity (US Tons)* | Fork Spread | Fork Opening Height | Fork Width Clearance | Hook Reach Fixed | Hook Reach Swivel | Hook Depth | Hook Opening | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| HFHBS-2-20 | 2 | 20 | 3.25 | 9.13 | 7.25 | 8.88 | 1.13 | 1.16 | 25 |
| Model # | Capacity (US Tons)* | Fork Spread | Fork Opening Height | Fork Width Clearance | Hook Reach Fixed | Hook Reach Swivel | Hook Depth | Hook Opening | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| HFHBS-5-24 | 5 | 24 | 3.25 | 10.75 | 9.25 | 11.44 | 1.81 | 1.69 | 50 |
| HFHBS-5-36 | 5 | 36 | 3.25 | 16.75 | 9.25 | 11.44 | 1.81 | 1.69 | 80 |
| Model # | Capacity (US Tons)* | Fork Spread | Fork Opening Height | Fork Width Clearance | Hook Reach Fixed | Hook Reach Swivel | Hook Depth | Hook Opening | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| HFHBS-10-36 | 10 | 36 | 4.25 | 16 | 14.63 | 16.44 | 2.59 | 2.41 | 190 |
| Model # | Capacity (US Tons)* | Fork Spread | Fork Opening Height | Fork Width Clearance | Hook Reach Fixed | Hook Reach Swivel | Hook Depth | Hook Opening | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| HFHBS-15-36 | 15 | 36 | 4.25 | 15.88 | 14.5 | 16.31 | 2.59 | 2.41 | 220 |
| Model # | Capacity (US Tons)* | Fork Spread | Fork Opening Height | Fork Width Clearance | Hook Reach Fixed | Hook Reach Swivel | Hook Depth | Hook Opening | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| HFHBS-7.5-36 | 7.5 | 36 | 4.25 | 16.25 | 13.75 | 15.75 | 2.25 | 2.22 | 175 |
Reviews
Write Your Own Review

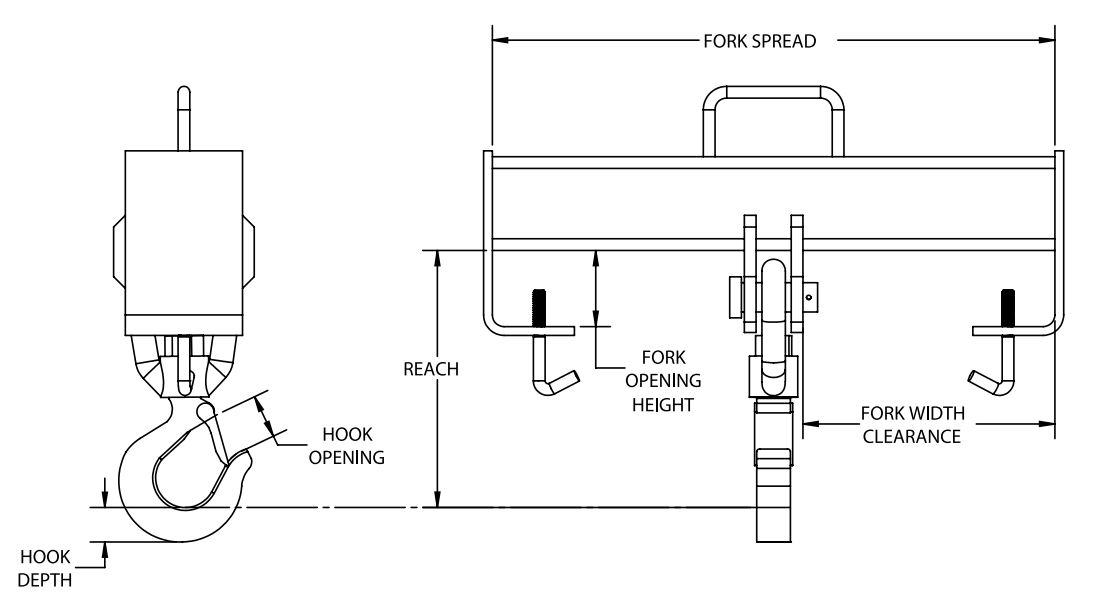

Dimension Guide
