WD Series Electric Winch Pulling Capacity 670 lbs - 29 fpm

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
More Information
Manufacture Part Number WD670
Brand Columbia
Add a new review
Ready to Order?
Buy from Crane Depot with confidence.

BUILT CUSTOM

CALL NOW FOR QUOTE

Estimated Ship Time: 4-5 Weeks

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Crane Depot coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

The WD Series winches deliver high pulling capacity with a 3450 RPM motor in a lightweight, compact package. Specific models are rated to pull up to 2400 pounds on a single line, and reach maximum speeds up to 40 feet per minute on the full drum.

Additional features and benefits include:

- 0.5 HP, 115/230V, Single Phase

- Rated for pulling

- Automatic braking system

- Totally enclosed geartrain

- Three stage planetary reduction

- TEFC UL-listed brakemotors

- Simple installation at any angle

- See Spec Sheet for perfomance data

*For line pull and wire rope requirements consult the factory 800-347-9975 or info@cranedepot.com

Product Resources
File Icon WD Series Electric Winch Spec Sheet (416.07 kB)
Technical Specification
All
WD6701
WD9001
WD10002
WD13001
WD14502
WD20002
WD24002
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD6701 0.5 3450 115/230 1Ø 113:1 670 29.5 567 34.7 493 39.9
WD9001 0.5 3450 115/230 1Ø 156:1 900 21.3 782 25.1 680 28.9
WD13001 0.5 3450 115/230 1Ø 216:1 1300 15.4 1083 18.1 942 20.9
WD10002 0.5 3450 115/230 1Ø 113:1 1000 22.5 766 31.1 599 39.8
WD14502 0.5 3450 115/230 1Ø 156:1 1450 16.3 1057 22.6 827 28.8
WD20002 0.5 3450 115/230 1Ø 216:1 2000 11.8 1464 16.3 1146 20.8
WD24002 0.5 3450 115/230 1Ø 261:1 2400 9.8 1769 13.5 1385 17.2
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD6701 0.5 3450 115/230 1Ø 113:1 670 29.5 567 34.7 493 39.9
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD9001 0.5 3450 115/230 1Ø 156:1 900 21.3 782 25.1 680 28.9
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD10002 0.5 3450 115/230 1Ø 113:1 1000 22.5 766 31.1 599 39.8
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD13001 0.5 3450 115/230 1Ø 216:1 1300 15.4 1083 18.1 942 20.9
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD14502 0.5 3450 115/230 1Ø 156:1 1450 16.3 1057 22.6 827 28.8
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD20002 0.5 3450 115/230 1Ø 216:1 2000 11.8 1464 16.3 1146 20.8
Model Motor HP Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WD24002 0.5 3450 115/230 1Ø 261:1 2400 9.8 1769 13.5 1385 17.2
Reviews
Write Your Own Review
You're reviewing:WD Series Electric Winch Pulling Capacity 670 lbs - 29 fpm

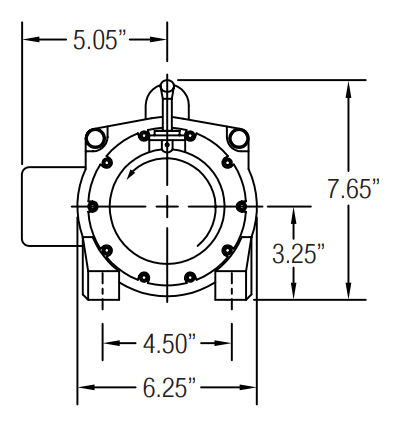

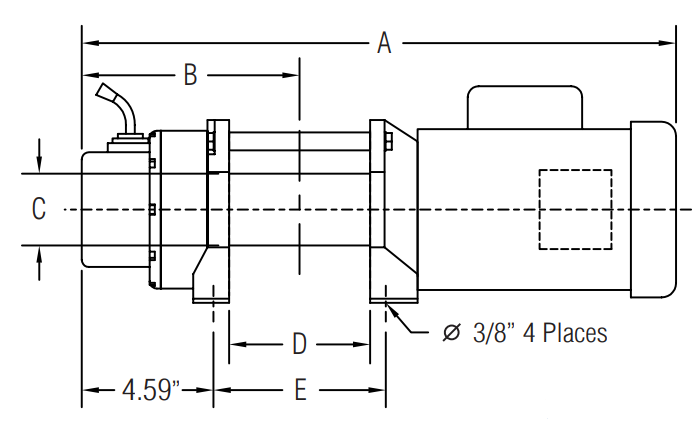

Dimension Guide
Dimension Dimension
