WG Series Electric Winch Pulling Capacity 1,000 lbs. - 56 fpm

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
More Information
Manufacture Part Number WG1000
Brand Columbia
Add a new review
Ready to Order?
Buy from Crane Depot with confidence.

BUILT CUSTOM

CALL NOW FOR QUOTE

Estimated Ship Time: 4-5 Weeks

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Crane Depot coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

The WG Series winches deliver a high pulling capacity in a lightweight,compact package. Specific models are rated to pull up to 11,000 pounds on a single line, and reach maximum speed up to 89 feet per minute on a full drum.

Additional features and benefits include:

- 2.0 HP, 230/460 Three Phase

- See spec sheet for performance data

- Variable Frequency Drive (VFD) packages include a VFD in a NEMA 4 steel enclosure and a NEMA 4X handheld pendant control with speed potentiometer and UP/DOWN momentary contacts on a 15' lead.

*Wire rope supplied separately. Contact factory for line pull and wire rope requirements. 800-347-9975 or info@cranedepot.com

*Variable speed control required

Product Resources
File Icon WG Series Electric Spec Sheet (452.75 kB)
Technical Specification
All
WG500
WG750
WG1000
WG1600
WG2400
WG3300
WG3700
WG5000
WG5600
WG7500
WG11000
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG500 1.0 1700 115/230 1Ø 36:1 500 55.7 375 72.2 305 88.7
WG500 1.0 1700 230/460 3Ø 36:1 500 55.7 375 72.2 305 88.7
WG750 1.5 1700 230 1Ø 36:1 750 55.7 562 72.2 457 88.7
WG750 1.5 1700 230/460 3Ø 36:1 750 55.7 562 72.2 457 88.7
WG1000 2.0 1700 230/460 3Ø 36:1 1,000 55.7 749 72.2 610 88.7
WG1600 1.0 3300 115/230 1Ø 261:1 1,600 15.1 1,242 19.6 1,011 24.1
WG1600 1.0 3300 230/460 3Ø 261:1 1,600 15.1 1,242 19.6 1,011 24.1
WG2400 1.5 3300 115/230 1Ø 261:1 2,400 15.1 1,863 19.6 1,516 24.1
WG2400 1.5 3300 230/460 3Ø 261:1 2,400 15.1 1,863 19.6 1,516 24.1
WG3300 2.0 3300 230 1Ø 261:1 3,300 15.1 2,484 19.6 2,021 24.1
WG3300 2.0 3300 230/460 3Ø 261:1 3,300 15.1 2,484 19.6 2,021 24.1
WG5000 3.0 3300 230/460 3Ø 261:1 5,000 15.1 3,726 19.6 3,032 24.1
WG3700 1.0 1725 115/230 1Ø 261:1 3,700 7.7 2,815 10.0 2,291 12.2
WG3700 1.0 1725 230/460 3Ø 261:1 3,700 7.7 2,815 10.0 2,291 12.2
WG5600 1.5 1725 115/230 1Ø 261:1 5,600 7.7 4,223 10.0 3,436 12.2
WG5600 1.5 1725 230/460 3Ø 261:1 5,600 7.7 4,223 10.0 3,436 12.2
WG7500 2.0 1725 230 1Ø 261:1 7,500 7.7 5,630 10.0 4,581 12.2
WG7500 2.0 1725 230/460 3Ø 261:1 7,500 7.7 5,630 10.0 4,581 12.2
WG11000 3.0 1725 230/460 3Ø 261:1 11,000 7.7 8,445 10.0 6,872 12.2
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG500 1.0 1700 115/230 1Ø 36:1 500 55.7 375 72.2 305 88.7
WG500 1.0 1700 230/460 3Ø 36:1 500 55.7 375 72.2 305 88.7
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG750 1.5 1700 230 1Ø 36:1 750 55.7 562 72.2 457 88.7
WG750 1.5 1700 230/460 3Ø 36:1 750 55.7 562 72.2 457 88.7
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG1000 2.0 1700 230/460 3Ø 36:1 1,000 55.7 749 72.2 610 88.7
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG1600 1.0 3300 115/230 1Ø 261:1 1,600 15.1 1,242 19.6 1,011 24.1
WG1600 1.0 3300 230/460 3Ø 261:1 1,600 15.1 1,242 19.6 1,011 24.1
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG2400 1.5 3300 115/230 1Ø 261:1 2,400 15.1 1,863 19.6 1,516 24.1
WG2400 1.5 3300 230/460 3Ø 261:1 2,400 15.1 1,863 19.6 1,516 24.1
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG3300 2.0 3300 230 1Ø 261:1 3,300 15.1 2,484 19.6 2,021 24.1
WG3300 2.0 3300 230/460 3Ø 261:1 3,300 15.1 2,484 19.6 2,021 24.1
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG3700 1.0 1725 115/230 1Ø 261:1 3,700 7.7 2,815 10.0 2,291 12.2
WG3700 1.0 1725 230/460 3Ø 261:1 3,700 7.7 2,815 10.0 2,291 12.2
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG5000 3.0 3300 230/460 3Ø 261:1 5,000 15.1 3,726 19.6 3,032 24.1
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG5600 1.5 1725 115/230 1Ø 261:1 5,600 7.7 4,223 10.0 3,436 12.2
WG5600 1.5 1725 230/460 3Ø 261:1 5,600 7.7 4,223 10.0 3,436 12.2
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG7500 2.0 1725 230 1Ø 261:1 7,500 7.7 5,630 10.0 4,581 12.2
WG7500 2.0 1725 230/460 3Ø 261:1 7,500 7.7 5,630 10.0 4,581 12.2
Model Motor Power Input Gear Ratio Calculated Performance
First Layer Mean Drum Full Drum
HP RPM Voltage Ø LBS FPM LBS FPM LBS FPM
WG11000 3.0 1725 230/460 3Ø 261:1 11,000 7.7 8,445 10.0 6,872 12.2
Reviews
Write Your Own Review
You're reviewing:WG Series Electric Winch Pulling Capacity 1,000 lbs. - 56 fpm

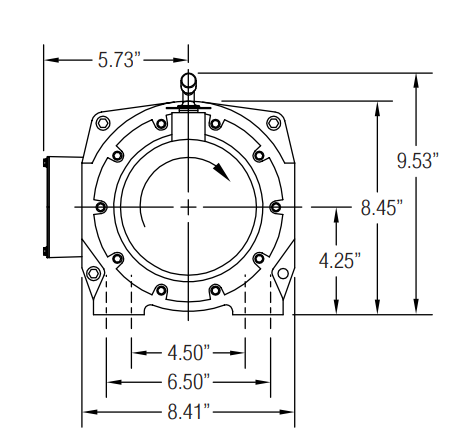

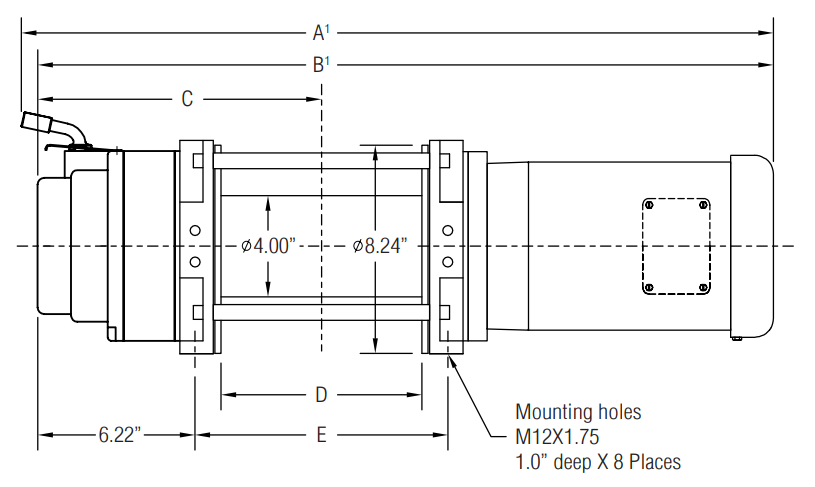

Dimension Guide
Dimension Dimension
